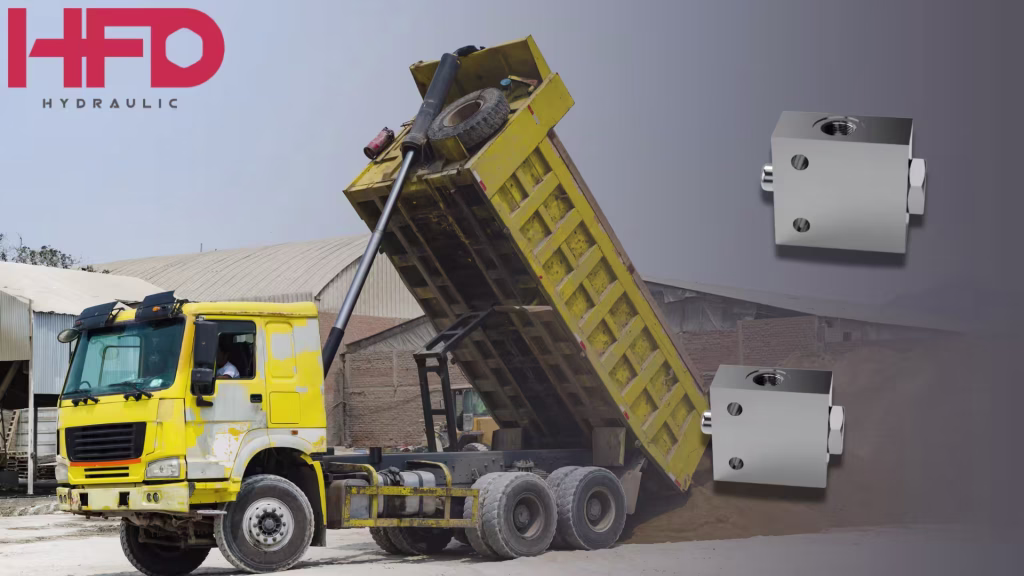

Dump truck operators face a constant balancing act between productivity and equipment protection. Tipping loads quickly keeps jobs moving, but over-extending the dump body damages cylinders, mounting points, and the truck frame itself. End of stroke valves solve this problem with simple mechanical protection that works regardless of operator experience or attention level.
Quick Overview: End of Stroke Valves for Dump Trucks
What does an end of stroke valve do on a dump truck?
An end of stroke valve mechanically stops hydraulic fluid flow to the lift cylinder when the dump body reaches a preset maximum angle — preventing cylinder over-extension, frame damage, and overhead obstacle strikes. It operates purely mechanically via a cable attached to the dump body: as the body rises, cable tension builds until it pulls the valve spool closed at the set angle, with no electronic sensors or operator input required.
Key functions and specifications:
- Cable-actuated normally open design – valve stays fully open during normal lifting; cable tension closes it only at the preset stop angle
- Fail-safe on cable break – if the cable snaps, the valve remains open and the truck keeps working; protection is lost but operation continues
- Adjustable stop angle – cable length sets the actuation point; 50–55° for standard aggregate hauling, 60–70° for sticky materials, 40–45° for restricted-height indoor operations
- FCA (push-button) – standard choice for most dump truck cable-actuated installations; normally open, simple actuation
- FCC (double-locked) – dual locking mechanism for heavy-duty or high-safety applications requiring extra security at end of stroke
Example
A dump truck operator unloading wet clay at a construction site needs a 65° tip angle to clear the load. The end of stroke valve cable is set to actuate at 67° — allowing full material discharge while preventing the cylinders from being forced past their rated extension limit, regardless of how long the operator holds the raise control.
Summary
An end of stroke valve is low-cost mechanical insurance against cylinder damage, frame stress, and overhead strikes on dump trucks — protecting equipment regardless of operator experience level and paying for itself the first time it prevents a cylinder replacement or frame repair.
Why Dump Trucks Need End of Stroke Protection
The typical dump truck hydraulic system uses one or two telescopic cylinders to raise the body from horizontal to approximately 50-70 degrees. Without proper controls, several dangerous situations can occur.
Overhead Obstacle Strikes: Construction sites and urban environments present numerous overhead hazards like power lines, building overhangs, and tree branches. Distractions cause operators to lose track of body position, leading to costly collisions.
Cylinder Over-Extension Damage: Forcing cylinders beyond their mechanical limits damages internal seals, bends rods, or cracks cylinder barrels. These failures often happen suddenly, creating serious safety hazards.
Frame Stress Points: As the body reaches extreme angles, stress concentrates at mounting locations, leading to cracked welds, bent brackets, and frame damage that can sideline equipment for weeks.
Load Shift Instability: Extreme tipping angles shift the center of gravity rearward. On uneven ground, tipping too far can cause the entire truck to become unstable, resulting in catastrophic tip-over incidents.
End of stroke valves prevent these scenarios by mechanically limiting how far the dump body can rise.
How Cable-Actuated End of Stroke Valves Work on Dump Trucks
The most common configuration uses a cable-actuated normally open end of stroke valve that matches the dump body’s arc-shaped movement pattern.
The valve mounts on a solid point of the truck frame near the hydraulic cylinder. A flexible steel cable connects from the valve actuator to the dump body structure. As the body rises, cable tension increases. When the body reaches the predetermined safe angle, cable tension pulls the valve spool, closing the valve and stopping oil flow to the lift cylinder.
The cable accommodates the curved path the dump body follows during tipping, maintaining consistent actuation force regardless of body position. When the cable is loose, the valve stays wide open and oil flows freely. If the cable snaps, the truck keeps working because the valve stays open. But you’re running without safety protection until you replace that cable.
Setting the Correct Stop Angle for Different Applications
Different hauling jobs require different dump angles. Adjustment is by changing how long the cable is or where it’s installed.
Standard Dump Angle (50-55 degrees): Construction and aggregate hauling typically uses 50-55 degree angles. This empties the load completely while keeping the truck stable. Cable length should be set so actuation comes at around 52-53 degrees.
Steep Angle Requirements (60-70 degrees): Sticky materials like wet clay or asphalt require steeper angles. Extend cable length to delay actuation until the body reaches 65-68 degrees. Always verify cylinder specifications allow these extended angles.
Restricted Height Operations (40-45 degrees): Indoor facilities or low overhead clearances require limited angles. Shorten the cable to stop body travel at 42-45 degrees.
Adjustable Systems: Trucks serving multiple roles benefit from adjustable cable mounting systems or quick-disconnect cable ends to change stop angles based on job requirements.
Installation Best Practices for Maximum Reliability
Proper installation determines whether an end of stroke valve provides years of reliable service or becomes a maintenance headache.
Valve Mounting Position
Bolt the valve to a solid part of the truck frame, and make sure you follow the manufacturer’s torque specs. Avoid mounting locations subject to flexing, such as thin body panels or unsupported frame sections. Frame flex during operation can loosen valve mounting bolts, causing misalignment and potential hydraulic leaks.
Position the valve where it remains accessible for periodic inspection and adjustment without requiring major disassembly. Technicians need to reach adjustment mechanisms, hydraulic connections, and actuator linkages for routine service. Mounting the valve underneath the frame or behind other components makes maintenance unnecessarily difficult.
Protect the valve from road debris, mud, and impact damage. While end of stroke valves feature robust construction, direct impacts from rocks or collision with loading equipment can damage valve bodies or hydraulic connections. Consider mounting in recessed frame sections or adding protective guards.
Cable Selection and Routing
Choose stainless steel aircraft cable (3-6mm diameter) rated for the valve manufacturer’s specified actuation forces. Stainless steel resists corrosion from road salt, fertilizers, and chemicals.
Route cables along protected paths avoiding sharp edges, hot exhaust components, and snagging hazards. Use cable guides at frame pass-through points. Maintain bend radii of at least 10 times the cable diameter to prevent strand breakage.
Secure cables at multiple points with clamps. The cable should remain taut during body lowering without resisting normal movement. Excessive slack causes whipping and accelerated wear. Install end fittings using proper crimping tools per manufacturer specifications.
Hydraulic Circuit Integration
Install the end of stroke valve in the line that runs from your directional control valve to the cylinder. This ensures the valve can stop oil flow when actuated.
Include a pressure relief valve rated slightly above normal operating pressure. When the valve closes while the pump runs, pressure rises rapidly. Set relief pressure 50-100 psi above normal lifting pressure but below maximum component ratings.
Use hoses and fittings rated for full system pressure (typically 300-400 bar). Undersized or degraded hoses can burst when pressure spikes occur.
Maintenance and Troubleshooting for Dump Truck Applications
Dump trucks operate in dirty, abrasive environments that challenge all mechanical systems. Following a consistent maintenance schedule keeps end of stroke valves functioning reliably.
Monthly Inspections
Inspect the cable monthly for broken strands, kinks, or wear. Cable damage typically begins at end fittings and sharp bend points Catching cable degradation early prevents sudden failure that eliminates dump body protection until repairs are completed.
Check cable routing and security. Cables work loose from mounting clamps over time due to vibration and frame flexing. Loose cables can snag on obstacles or allow excessive slack that prevents proper valve actuation. Re-secure any loose clamps and verify the cable follows its intended routing path.
Test valve actuation by slowly raising the dump body while observing when the cable pulls the valve spool. The actuation point should remain consistent with the initial setup. Significant changes in actuation angle indicate cable stretch, mounting point movement, or valve internal wear requiring attention.
Inspect hydraulic connections at the valve for leaks or seepage. Small leaks often indicate loose fittings that need retightening or degraded O-rings requiring replacement. Catching leaks early prevents contamination entry that damages internal valve components.
Common Problems and Solutions
Cable Actuation Drift: If the dump body rises higher than originally set before the valve actuates, cable stretch is the likely cause. New cables stretch during initial break-in and may require adjustment after the first few weeks of operation. Shorten the cable slightly by adjusting the mounting point or replacing the cable if excessive stretch has occurred.
Inconsistent Actuation: The valve sometimes actuates at the correct angle but other times allows the body to rise higher. This inconsistency typically indicates binding in the cable routing or debris interfering with valve spool movement. Inspect the entire cable path for obstructions and clean the valve body thoroughly.
Pressure Spikes During Actuation: If you hear loud banging or feel shock loads when the end of stroke valve closes, pressure relief settings may be incorrect or the relief valve may have failed. Check relief valve operation and adjust or replace as needed. Sudden valve closure with no pressure relief creates dangerous shock loads throughout the hydraulic system.
Premature Cable Failure: Cables that break after short service periods usually indicate routing problems, improper cable selection, or excessive actuation force. Review cable routing for sharp bends or abrasion points. Verify that cable diameter and construction match valve manufacturer specifications. Some applications require larger diameter cables or special flexible constructions for extended service life.
Upgrading Older Dump Trucks with End of Stroke Protection
Many older dump trucks lack factory-installed end of stroke protection. Retrofitting these vehicles significantly improves safety and prevents expensive damage.
Determine the optimal maximum dump angle for the truck’s typical work, considering overhead clearances and load types. Choose an end of stroke valve with flow capacity matching the truck’s hydraulic system—most single-cylinder trucks require 60-100 liters per minute, while twin-cylinder systems need higher capacity.
Plan hydraulic line routing to minimize system modifications. Using flexible hoses simplifies installation and future adjustments. Mount the valve where frame structure provides solid support. After installation, test thoroughly before full production use, raising the body slowly while monitoring actuation angle and fine-tuning cable length.
Maximizing Dump Truck Productivity with Reliable Protection
End of stroke valves transform dump truck operations by removing operator worry about over-extension. Drivers can focus on positioning, traffic, and ground conditions rather than constantly monitoring dump angle, speeding up cycles and reducing operator fatigue.
The mechanical protection works identically whether operated by experienced drivers or new operators, reducing training requirements and minimizing damage risks from operator inexperience. For fleet managers, end of stroke valves represent inexpensive insurance—a single cylinder replacement or frame repair costs far more than installing protection on the entire fleet.
Properly maintained end of stroke valves deliver years of reliable service with minimal requirements. The mechanical simplicity means fewer failure points and straightforward troubleshooting, keeping trucks working rather than sitting in repair shops.
Recommended End of Stroke Valves for Dump Trucks
For dump truck applications, HFD Hydraulic offers two proven valve configurations:
Push-Button End of Stroke Valve (FCA): The standard choice for most dump truck installations. Features simple push-button actuation and normally open operation, making it ideal for cable-actuated systems. Learn more about the FCA valve
Double-Locked Push-Button End of Stroke Valve (FCC): Provides enhanced security with dual locking mechanisms for heavy-duty applications or situations requiring extra safety margins. Perfect for larger dump trucks or extreme operating conditions. Learn more about the FCC valve
Both valves handle the pressure and flow requirements typical of dump truck hydraulic systems while providing reliable mechanical protection.
